Automatic LED Bulb Assembly Machine

About Automatic LED Bulb Assembly Machine

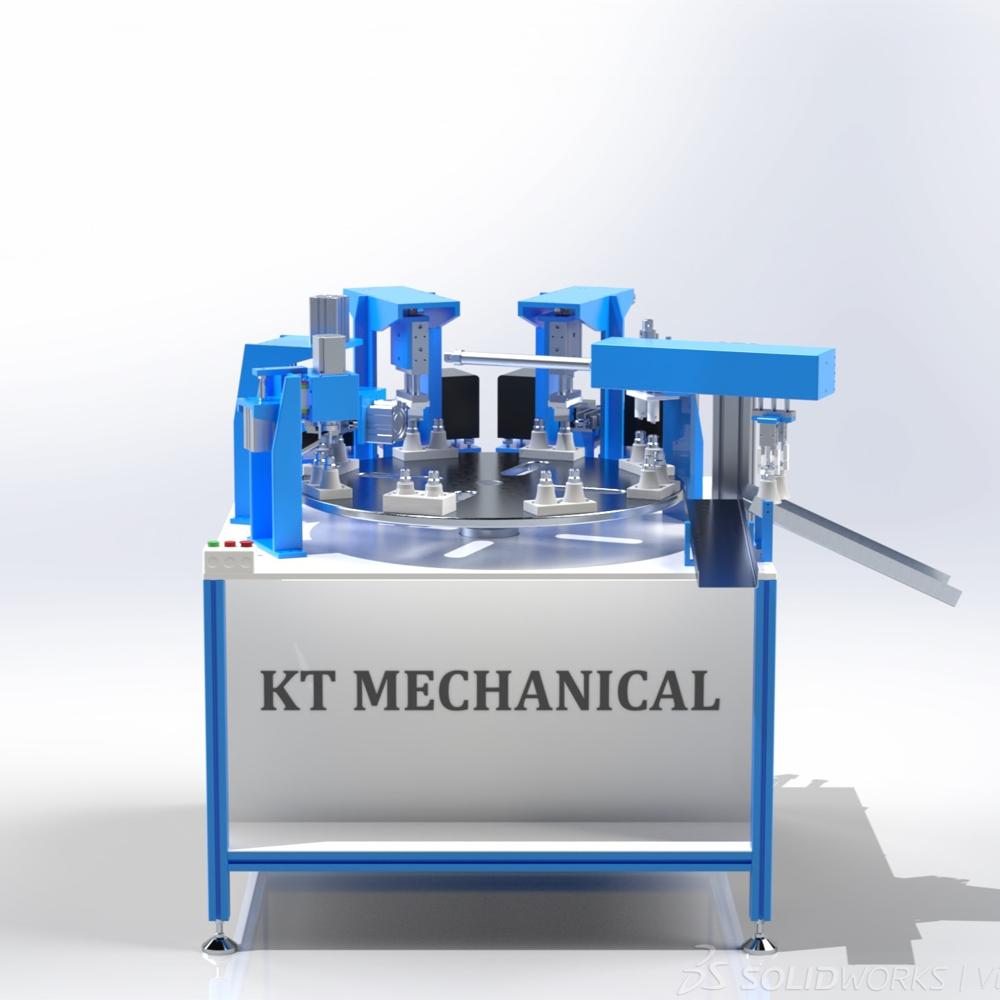

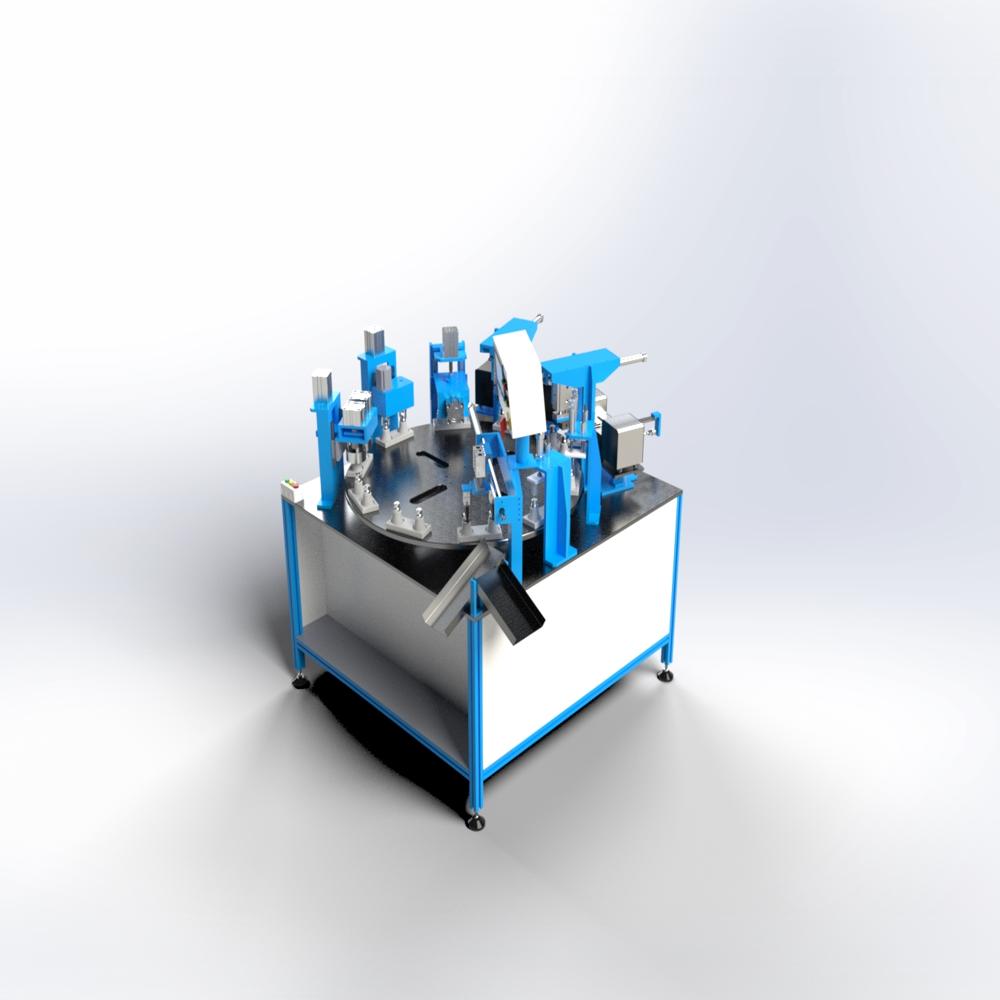

We offer a high-precision Rotary LED Bulb Assembly & Testing Machine designed for the fast and consistent assembly of LED bulb housings with B22 caps. The machine features manual loading and automated multi-station operation on a cam-based rotary indexing platform, ensuring efficient assembly and real-time quality testing of two bulbs per cycle.

• Cam Indexer-Based Rotary Table

• Dual-Part Fixture for Higher Throughput

• Automatic B22 Cap Alignment via Pin Guidance

• Wire Cutting & Bending System

• Eyelet Insertion Units for Both Bulbs

• Integrated Power Meter Testing for Both Bulbs

• Automatic OK/NG Ejection via Separate Chutes

• Compact Design with PLC + HMI Control

• Low Maintenance & Operator-Friendly

• Manual Loading: Operator loads two LED housings (with B22 caps) into the fixture.

• Cap Orientation: The machine aligns the cap using pin guidance for accurate positioning.

• Wire Cutting & Bending: Cuts and bends wires coming from the B22 cap.

• Eyelet Fixing Unit 1: Inserts eyelet into the first housing's B22 cap.

• Eyelet Fixing Unit 2: Inserts eyelet into the second housing in the same fixture.

• Testing Station: Checks both bulbs for electrical parameters using power meters. Sends OK/NG signal to PLC.

• Auto Ejection: OK bulbs move to conveyor via OK chute, NG bulbs to bin via separate chute.

This machine is ideal for LED bulb manufacturers seeking to automate their production line, improve quality control, and reduce manual workload.

Customization Available
Made in India
Backed by After-Sales Support
